Mounted on a Core

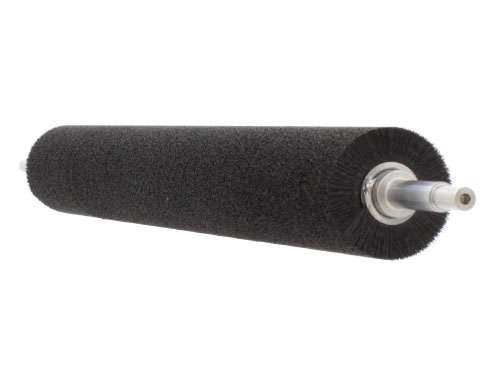

A strip brush helically wound and permanently mounted to a core.

All new brush and core, or reuse your existing core.

Where there is a significant investment in the core, we can replace the brush and if needed repair the core, both to a “like new” condition. In house we manufacture simple to complex tight tolerance cores with dynamic balancing.

Mounted brushes allow different densities by adjusting the “pitch or turns per ft.”

A coil brush with a large pitch, or few turns per ft. can resemble an auger, where a coil brush with a small pitch or many turns per ft. will give you the greatest density. On on a high density coil brush the turns of the brush may not even be visible.


14 Turns Per Ft.
As shown left hand helix.


28 Turns Per Ft.
As shown left hand helix.


32 Turns Per Ft.
As shown left hand helix.

Get a Quote

  • Provide us as much information as you can, or we welcome your call at 800-968-9600. You may print, fill in, scan, and upload a diagram below.

    If you need your worn out brushes replaced, please complete A.

    If you would like to replace both the core and the brush, please complete A and B.
  • A - Brush Dimensions
    To share your brush measurements, please view & print the full size brush diagram to the right. Fill in your measurements. Scan, and then upload as an attachment below.

  • B - Core Dimensions
    If you would like a new brush on a new core, please also attach a scan of your core measurements. Here are three of the popular core journal variations that you may print and fill in.

  • Upload Scan/Attachments:
    Drop files here or

For information on brushes that are not permanently mounted to a core see:
Loose Coil Brush
